Product Description
SHACMAN HYDRO EXCAVATORS Truck Sewer Jet Suction Units (Clean Water Tank 8m3 ; Sewage Tank 10m3 ) Combine Vacuum Jetting-Flushing Truck
Customized Combined Sewer Jetting Vacuum Tank
Customizing Vac truck
- Truck Mounted Jetting Units
- Truck Mounted Vacuum Units
- High Pressure Washer Units
- Trailer Mounted Sewer Cleaners
(Drain Blasters) - Trailer Mounted Ultra High Pressure Cleaners
- Truck Mounted Combination,
Jet Suction Units - Truck Mounted Recycling
Combination Units - Truck Mounted Runway
Rubber Removal Unit - Tank Cleaning Systems
- Fire Fighter Units
- Nozzles
- Testing Pump Units
- High Pressure Pumps
- 6,000-30000Litres Combined Vacuum Jetting Tank Body





Vacuum Jetting Tank SKD. Vacuum Jetting Tank Vacuum Jet Body Superstructure; Combined Vacuum Jetting Tank Body;

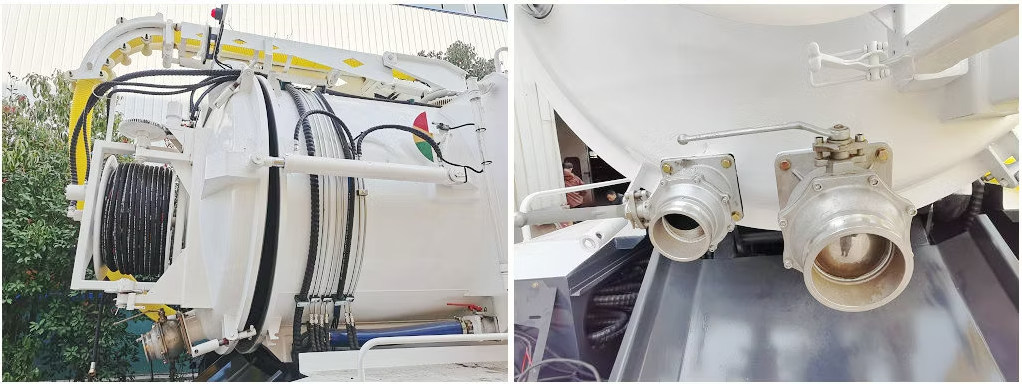

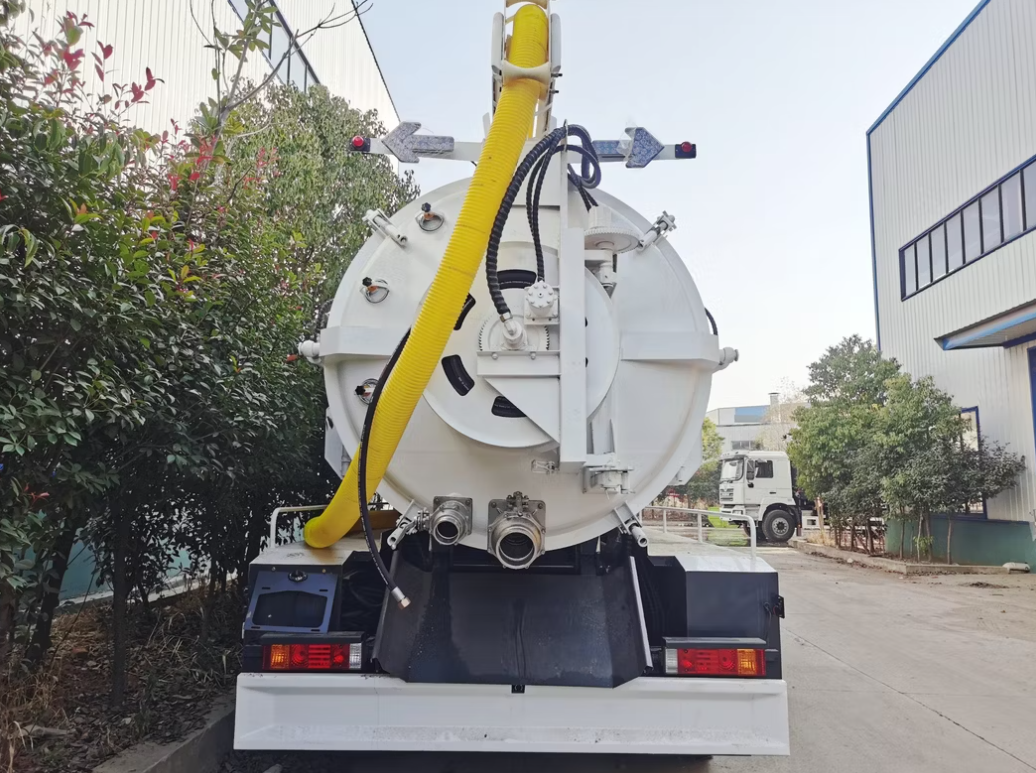

---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Adopt imported high pressure pump or equivalent China top brand pump.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

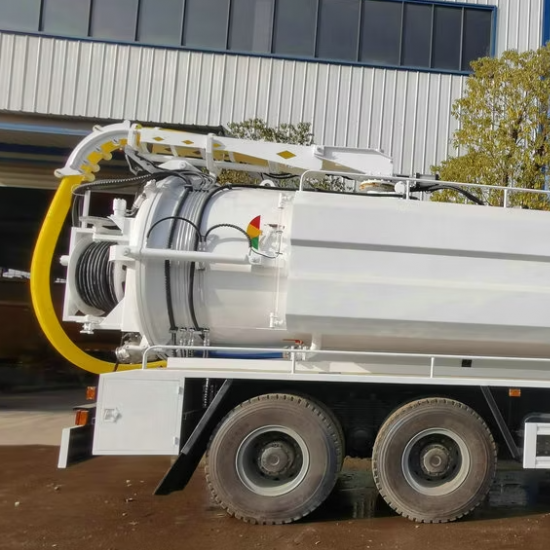

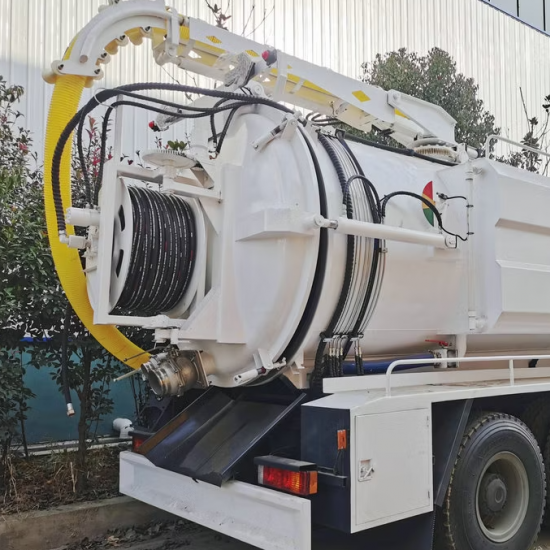

Combined vacuum jetting tank body (also called vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) will be used to mounted onto chassis to clean and collect liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
It has two main parts. The high pressure jetting part to remove the blocked sewage, the other vacuum suction part collect the sewage.
16,000 -20000Litres Combined Vacuum Jetting Tank Body
Product Technical Specifications | ||||
Item | Descriptions | Spesifications and Types | ||
Vehicle | Brand | USEDTRUCKSEXPORT | ||
Overall Dimensions L*W*H | 8670*2500*3690mm | |||
Weights | GVW. | 25000kgs | ||
Kurb Weight | 10520kgs | |||
Rated Payload | 15350kgs | |||
Chassis | Chassis Brand | Shacman | ||
Drive Type | 6x4 | |||
Steering | LHD or RHD | |||
Engine | Brand | Weichai engine | ||
Power | 190-385HP | |||
Emmission Level | EURO 2 or Euro 3 or EURO 5-6 | |||
Performance | Max. Speed | 76km/h | ||
Wheel base | 4500 +1300 mm | |||
Tyre Specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 | |||
No. of Tyre | 6 pcs (1 spare tyre included) | |||
Cab | Cab Capacity | 2 persons allowed | ||
Body/Superstructure | Tank | Capacity | water tanker 6m3 sewer tanker 10m3 | |
Material | 5mm or 6mm high quality carbon steel | |||
Vacuum pump | China famous vacuum pump and high pressure pump | |||
Vacuum rate | 99% thorically | |||
Suction head | 6m | |||
Rotation speed | 500 rpm,low noise,high efficiency | |||
Basic Equipments |
Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
Paint | Tank color is according to client's requirements. |
|||
Optional Equipments | Italy or Spain vacuum pumps | |||
Stainless steel | ||||
Anti-rust coating inside tank |

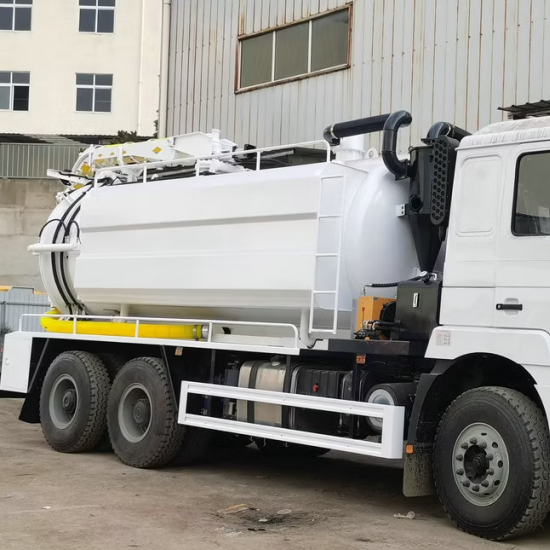

shacman 6x4 sewer jetting sewage suction truck 20m3
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
Combined sewer truck |
Drive Type |
6*4 |
|
Gross Vehicle Weight(kg) |
25000 |
|
Curb Weight (kg) |
13000 |
|
Overall Dimensions L*W*H(mm) |
11000×2500×3270 |
|

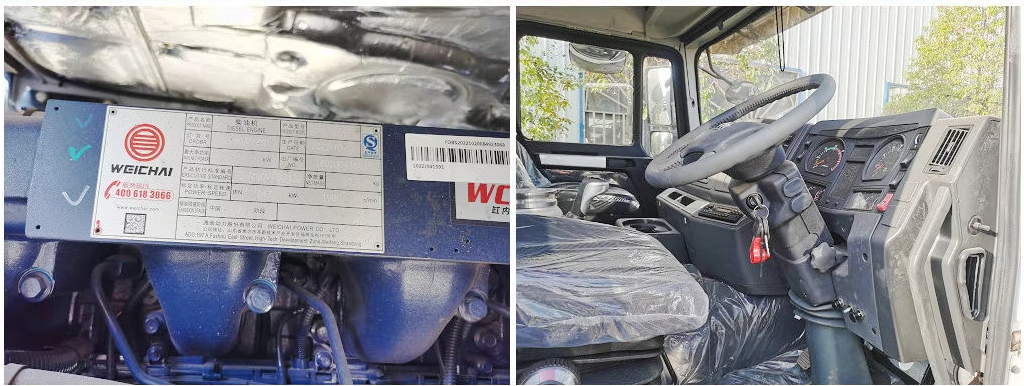

Engine |
Engine Model |
WP10.290E32 |
Engine Brand |
Wei Chai |
|
Fuel Type |
Diesel |
|
Power |
290HP |
|
Emission Standard |
Euro II |
|
Displacement(ml) |
9760 |
|
Engine Type |
6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling |
|
Chassis |
Chassis Brand |
SHACMAN |
Tire No. |
10+1 |
|
Tire Specification |
12.00R20 Steel tire |
|
Wheelbase (mm) |
4375+1400 |
|
Axle No. |
3 |
|
Front Axle |
MAN 7.5T |
|
Rear Axle |
MAN 13T double grade |
|
Steering Wheel |
Left Hand Drive with power-assisted |
|
Gear Box |
FAST 9 speed forward with 2 reverse, manual |
|
Brake |
Air brake |
|
Air Conditional |
Suitable for tropical climate |
|
Tank |
Tank Material |
Carbon steel |
Tank Shape |
Cylindrical |
|
Waste water tank volume(L) |
16000 |
|
Clean water tank volume(L) |
4000 |
|
Pump |
High pressure vacuum |
Italy imported |
Vacuum pump |
Domestic Weilong pump |
|
Hose |
Suction hose length(m) |
6 |
High pressure cleaning hose(m) |
60 |
|
Jetting sprayer |
10 pcs |
Vacuum Jetting Tank SKD, Vacuum Jet Tanker Superstructure
Vacuum Jetting Tanker(16,000 litres)
Item | unit | parameter | ||
Vehicle model | Vacuum Sewage Suction Truck | |||
Overall dimensions | mm | 12850×2585×3200 | ||
Factual cubage | L | 12000L vacuum tank and 4000L water | ||
GVW | kg | Appro×27425 | ||
Rated loading capacity | Appro×16000 | |||
Mass in working order | Appro×10625 | |||
Body internal dimensions | mm | / | ||
Wheel base | 4300+1350 | |||
F/R track base | 1750/1586 | |||
Approach/departure angle | ° | 18/14 | ||
Exhaust/hp | ml/hp | 9726/340 | ||
Max speed | km/h | 90 | ||
Tire specification | 12.00R20 | Engine type | WD615 | |
Traction system | 6×4 | transmission | 12-speed with over drive | |
Number of axles | 3 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 |
