Product Description

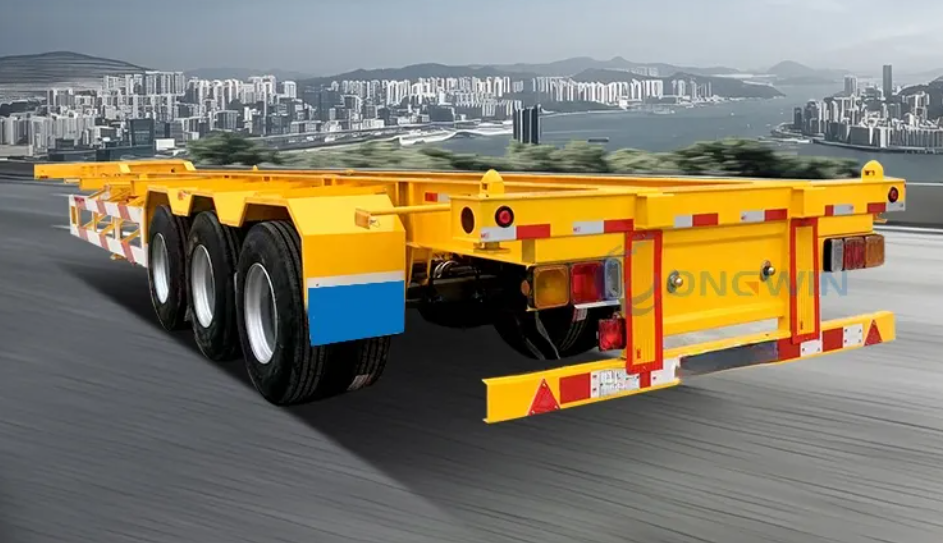

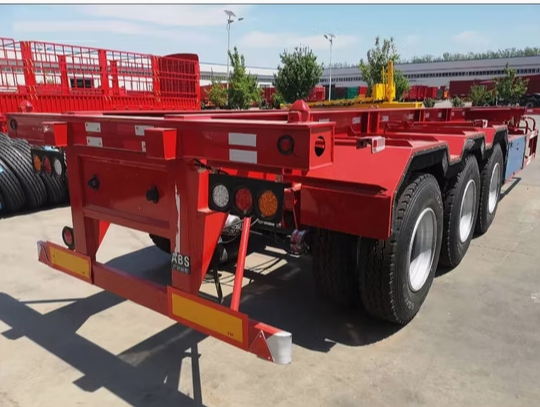

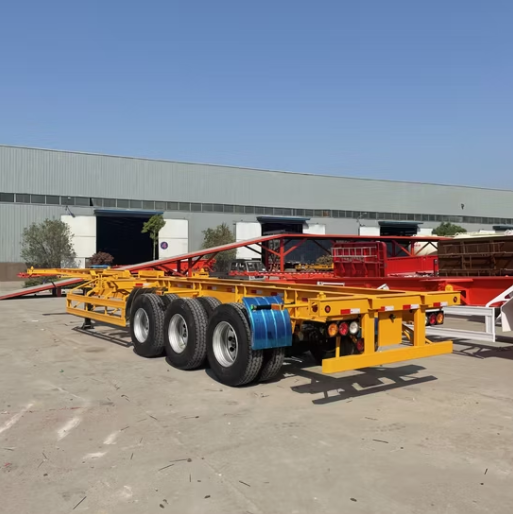

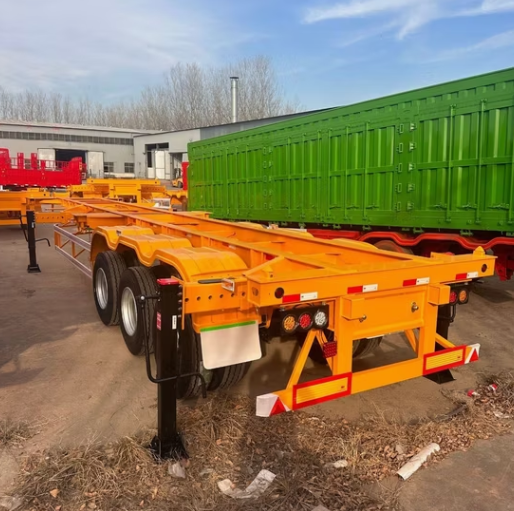

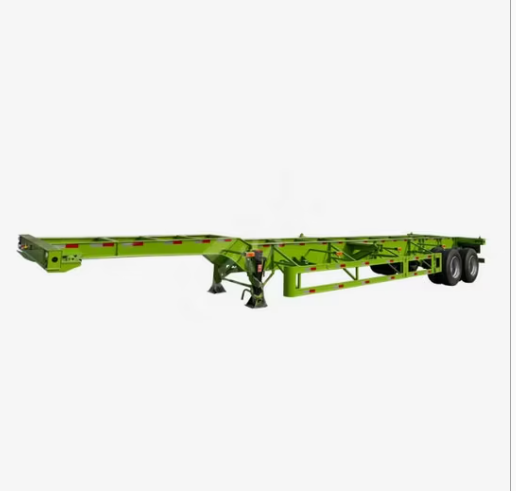

Skeleton semi-trailer is a large vehicle used for transporting goods. It consists of a tractor unit and a semi-trailer box. The box structure is relatively simple, usually with only one backboard and no fixed cargo compartments. The skeleton semi-trailer has the feature of being detachable, allowing for flexible assembly and disassembly according to the requirements of the cargo, adapting to different sizes and weights of goods transportation. This makes the skeleton semi-trailer a versatile and multi-purpose transportation tool, suitable for various types of cargo transportation, including but not limited to containers, timber, steel, and machinery equipment. The structural design of skeleton semi-trailer can effectively improve the load-bearing capacity, enabling it to carry larger sizes and weights of goods. Compared to other types of semi-trailers, the structure of the skeleton semi-trailer is more robust, with the ability to distribute and withstand the weight of the goods, enhancing transportation efficiency and safety.
Dimension
|
12500*2500*1600 (can be customized)
|
Payload
|
30-80T
|
Tare Weight
|
About 6.5T
|
Twist Lock
|
12 units
|

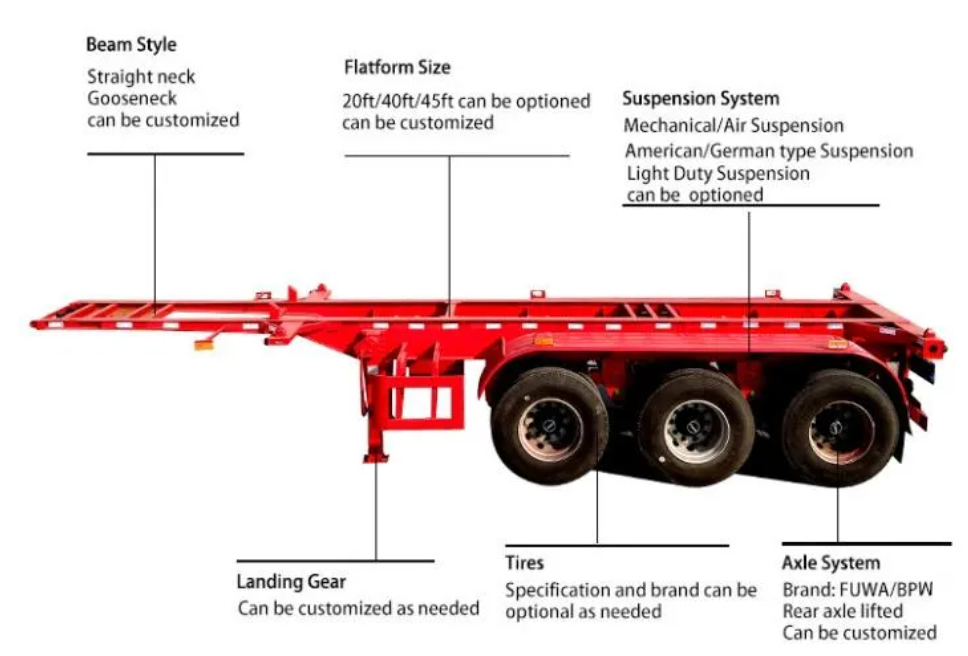

Main Beam
|
The height of the beam is 500 mm
upper plate is 14mm down plate is 16mm middle plate is 8mm |
Axle number
|
3
|
Axle
|
13Ton Fuwa/BPW brand etc
|
King pin
|
#50 (2")/#90 (3.5") JOST/Other Brand
|
Suspension
|
Mechanical suspension / Germany type or America type / Air suspension
|
Leaf spring
|
90mm(W)*13mm(T)*10 Layer
|
Support legs
|
28Ton standard
|
Rim
|
9.0-20*12 pcs
|
Tire
|
235/75R17.5 / 245/70R17.5 / 245/70R19.5 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 brand can be optional
|

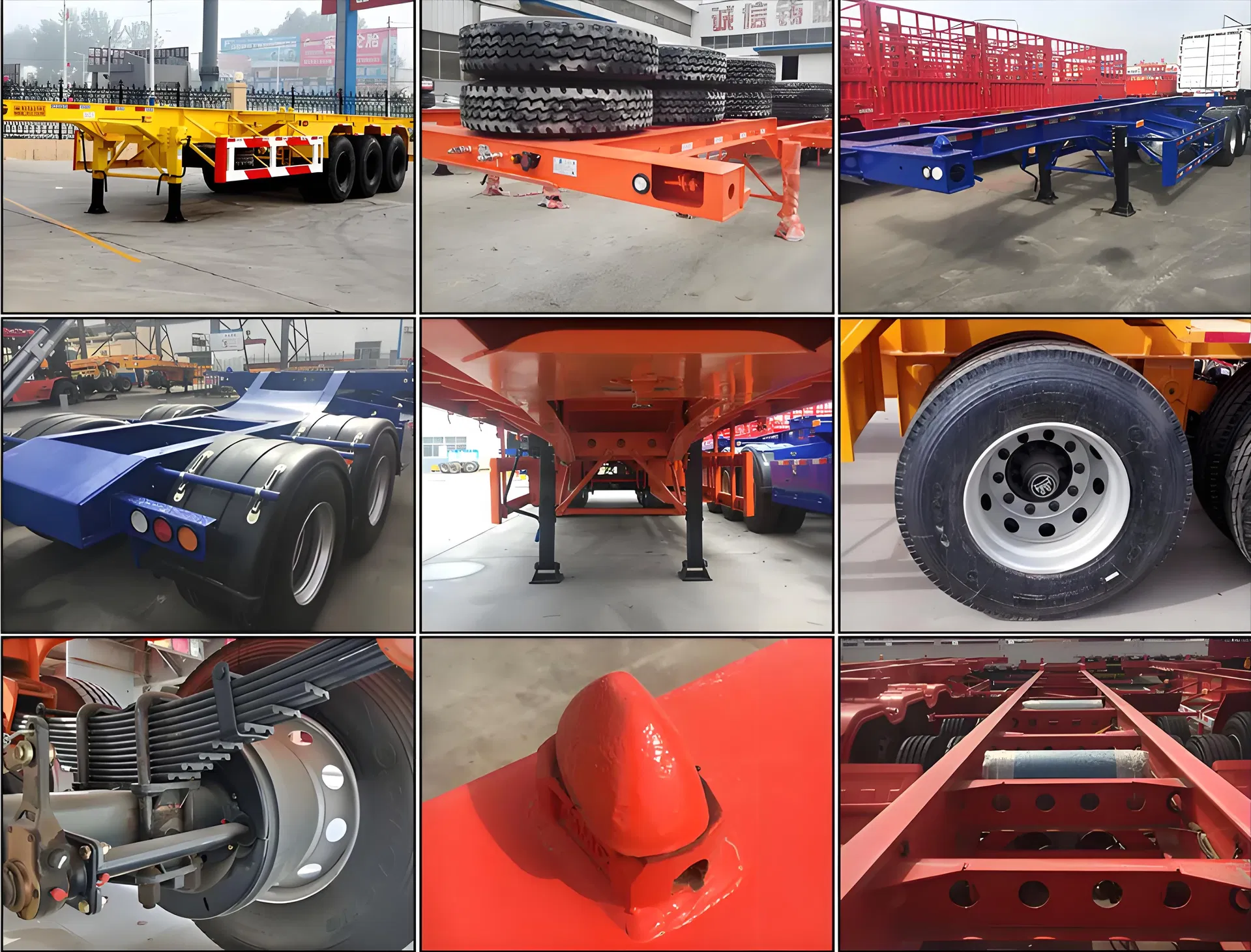

Other parts
|
1 tool boxs
|
Spare tyre holders
|
2
|
Electrical System
|
24V electrical system with LED light
|
