Dump Trucks: A Complete Guide to Design, Types, and How They Work

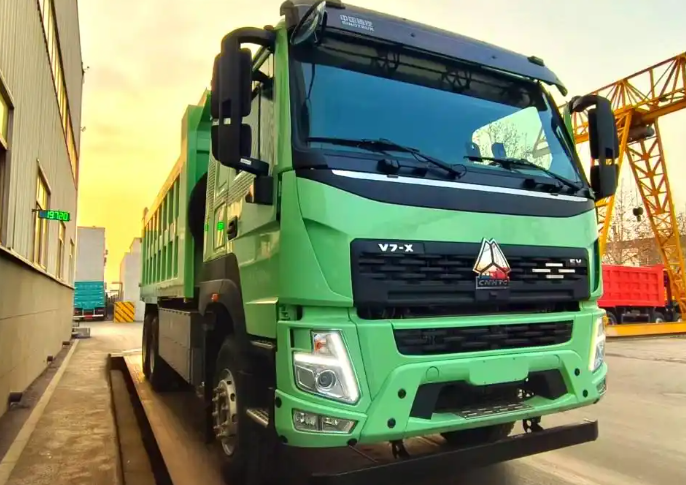

A dump truck, also known as a tipper truck, is an indispensable heavy-duty vehicle designed for transporting and unloading loose materials like sand, gravel, and demolition waste with high efficiency. Its defining feature is a hydraulically operated open-box bed that lifts at the front, allowing the cargo to be dumped out behind the vehicle.

Key Components and Design

The design of a dump truck integrates a robust chassis with a specialized hydraulic system.

• Chassis and Powertrain: The chassis, which includes the engine, transmission, and axles, is built for durability and stability under heavy loads, similar to that of a standard heavy-duty truck.

• Hydraulic Lifting Mechanism: This is the core of the dump truck. The system consists of a hydraulic pump, lift cylinders, a control valve, and a fluid reservoir. The engine's power drives the hydraulic pump, which pressurizes fluid. This high-pressure fluid is then directed to the lift cylinders, extending the piston rods to raise the truck bed.

• Truck Bed (Body): The bed is an open-top container made of high-strength steel. Its design varies based on application; for instance, a rock body for mining has thicker walls to handle large, abrasive rocks, while a standard rectangle body is used for general construction materials.

• Safety Features: Critical safety components include a cab guard (to protect the driver's cabin from shifting loads) and a body lock to secure the bed during transit.


Different Types of Dump Trucks

Dump trucks are categorized based on their dumping direction and drive configuration.

By Dumping Direction:

• Rear-Dump Trucks: The most common type. The bed lifts to dump the load behind the vehicle. Ideal for organized work sites with clear dumping areas.

• Side-Dump Trucks: The bed tilts to either side, allowing for precise unloading in tight spaces, like next to a trench or on a narrow road.

• Multi-Way Dump Trucks: Offer the flexibility to dump to the rear or either side, providing maximum operational versatility.

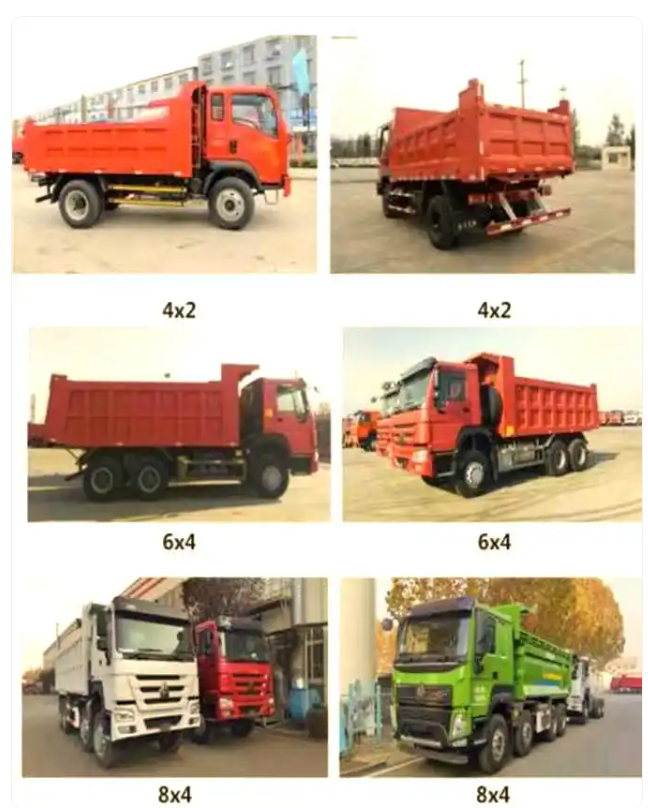

By Drive Configuration:

• 4x2 Dump Trucks: With one driven axle, these are suitable for lighter loads and on-road applications.

• 6x4 Dump Trucks (Tandem Axle): Featuring two powered rear axles, this is the standard for heavy-duty construction and mining, offering superior traction and load capacity.

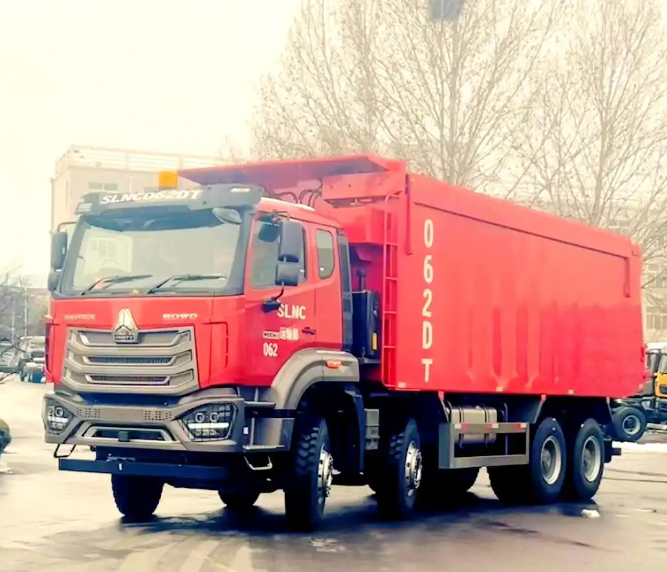

• 8x4 Dump Trucks: With four powered axles, these are used for the heaviest loads and most challenging off-road conditions.

How a Dump Truck Works: Step-by-Step

The dumping operation is a straightforward yet powerful hydraulic process:

1. Engage the Power Take-Off (PTO): The driver engages the PTO, which transfers power from the engine to the hydraulic pump.

2. Activate the Hydraulic System: The pump pressurizes hydraulic fluid, which is sent through control valves and hoses to the large lift cylinders located under the front of the truck bed.

3. Lift and Tilt: The pressurized fluid forces the pistons in the cylinders to extend, pushing the truck bed upwards from the front.

4. Controlled Dumping: The operator can control the lift height, allowing for a controlled flow of material. Gravity pulls the cargo out of the raised bed.

5. Lower the Bed: Once empty, the control valve is switched to retract the cylinders. The combined weight of the bed and the hydraulic retraction force it back into the locked traveling position.


Common Applications

Dump trucks are vital in numerous industries:

• Construction and Mining: They are the backbone of these sectors, moving earth, rocks, coal, and other aggregates on large-scale projects.

• Agriculture: Used to transport and unload harvested crops, grain, or animal feed.

• Waste Management: Essential for collecting and transporting municipal solid waste to landfills or recycling centers.

• Infrastructure and Road Maintenance: Used to clear debris from construction sites and transport materials for road building and repair.

This combination of powerful mechanics and practical design makes the dump truck a fundamental tool for modern infrastructure and industry.
