Product Description

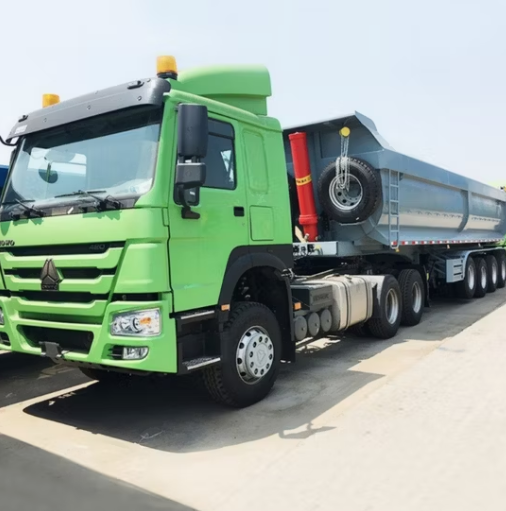

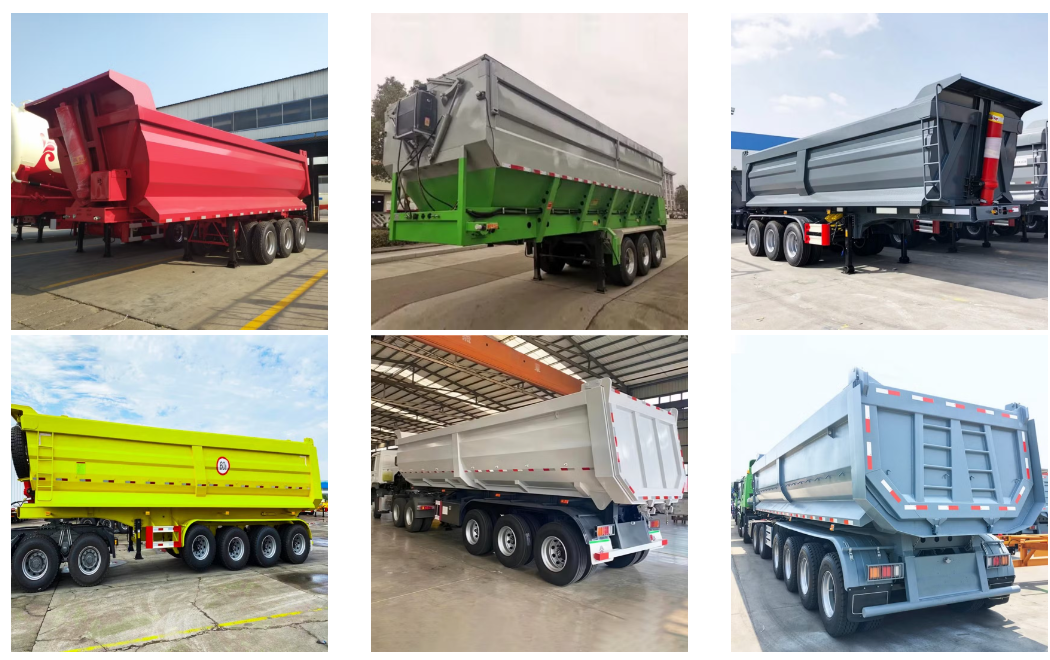

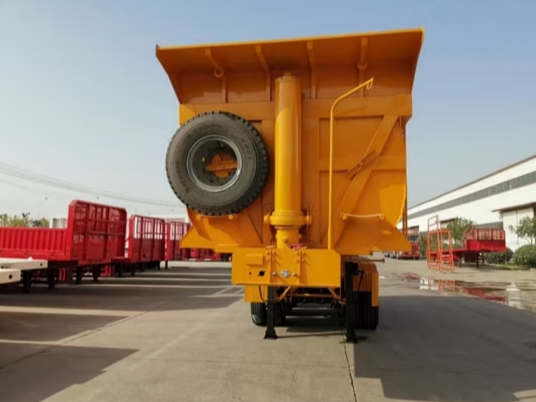

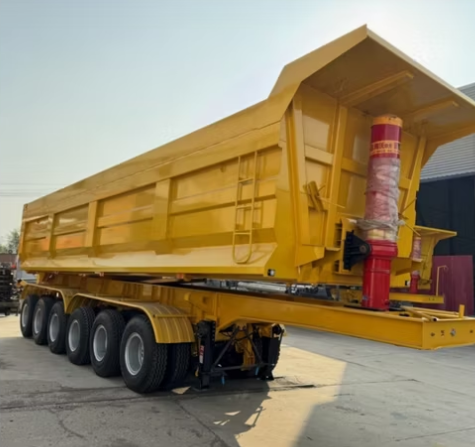

A rear dump semi-trailer is a type of specialized trailer commonly used for transportation and dumping various bulk materials, such as gravel, coal, and construction materials.
The main feature of this semi-trailer is its rear dump capability. It is designed to allow cargo to be unloaded from the rear of the trailer, enabling quick dumping and loading. This design greatly improves loading efficiency, saving time and manpower.
A rear dump semi-trailer is typically composed of a tractor unit and a detachable trailer component. The trailer component is connected to the tractor unit and has a lifting mechanism used for raising and lowering the cargo. The cargo is lifted and tipped onto the ground, allowing for easy unloading. Some rear dump semi-trailers are also equipped with hydraulic systems for more precise and controlled dumping process.
The advantages of this type of semi-trailer are its large payload capacity, high efficiency, and versatility. It can operate on various roads and terrains, adapting to different working environments. Rear dump semi-trailers are widely used in construction, mining, and earth moving industries and play a significant role in cargo transportation and dumping.
Application:
|
Coal/Mine/Stone Loading
|
Dump Style:
|
rear dumping
|
Loading Capacity:
|
30T-100T
|
Axle:
|
2/3/4* 13/16T FUWA/BPW
|
Length*Width*Height:
|
11000mm*2500mm*2800mm (customized)
|
Cylinder:
|
model choice is according to the length of cargo box
|
Floor Plate Thickness:
|
5mm
|
Sidewall Thickness:
|
4mm
|
OEM/ODM:
|
Available
|
Main Beam
|
Q345/T700
|
Height:500mm
|
|
Upper Plate: 14mm
|
|
Middle Plate: 8mm
|
|
Lower Plate: 16mm
|
|
Tire:
|
11.00R20/12R222.5* 8/12/16 pieces, Linglong/Triangle/Double-Coin
|
Rim:
|
8.0/9.0*8/12/16 pieces, steel/aluminum
|
Suspension:
|
Mechanical/Air suspension
|
Leaf Spring:
|
90mm*13/16mm*10 pieces
|
Landing Gear:
|
28T two-speed
|
Painting
|
Compete Chassis sand blasting to clean rust,l coat of anticorrosive prime,2 coats of final paint
|
